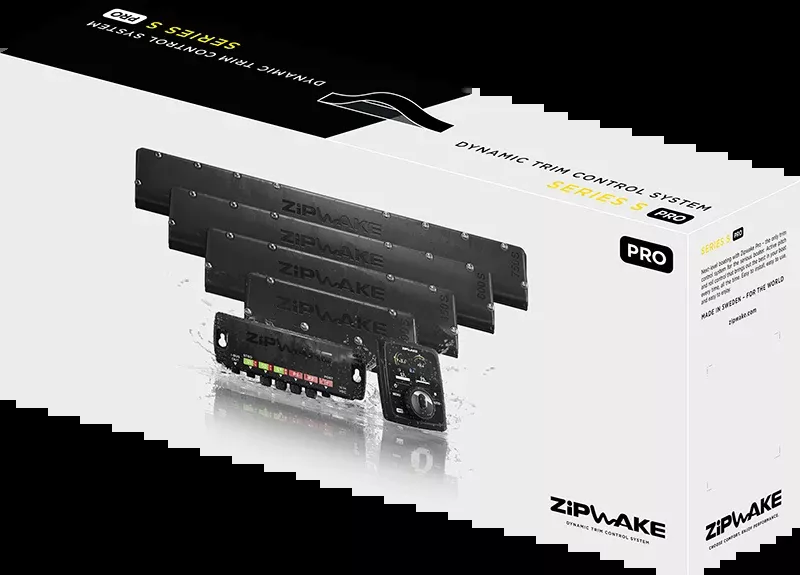

The Zipwake KB750-S PRO is a complete Series S PRO kit box built around two 750 mm (29.5 in) straight interceptors. It packages the matched control, distribution and interceptor components specified for this exact kit.
This standard configuration includes the dedicated Zipwake control panel for direct helm operation.
Product Information
| Brand | Zipwake |
|---|---|
| Series | Series S PRO |
| Model | KB750-S PRO |
| Manufacturer Part Number | 2021148 |
| Product Type | Dynamic Trim Control Kit Box |
| Configuration | Straight |
| Interceptor Size | 750 mm (29.5 in) |
Key Features
- Factory-defined Series S PRO kit configuration
- Matched pair of straight interceptors
- Control or integration hardware matched to the kit model
- Exact component quantities confirmed in the current Zipwake specification
Specifications
| Kit Configuration | Straight |
|---|---|
| Interceptor Size | 750 mm (29.5 in) |
| Packaged Dimensions | 980 x 156 x 274 mm (38.6 x 6.1 x 10.8 in) |
| Packaged Weight | 12.0 kg (26.5 lbs) |
| System Supply Voltage | 12–32 V DC |
| Interceptor Servo Voltage | 36 V DC |
| Maximum Boat Speed | 60 knots |
| Blade Stroke | 30 mm (1.2 in) |
| Blade Rate | 100 mm/s (4 in/s) |
Included
- 1 × CP PRO control panel with 7 m (23 ft) standard cable
- 1 × DU PRO distribution unit with 4 m (13 ft) power cable
- 2 × IT750-S PRO interceptors, each with 3 m (10 ft) cable and cable cover components
Compatibility
Designed as the exact KB750-S PRO configuration for Zipwake Series S PRO. Components from other series or non-PRO/PRO generations must not be mixed.
Installation Notes
- Verify system sizing, interceptor placement and hull suitability before installation.
- Use the exact Zipwake installation instructions and drill templates for the included interceptor models.
- Connect power protection, networking and cable extensions only as specified for this series.
Important Information
This is a complete kit box with the exact components listed above. Do not replace the verified interceptor size or configuration with another model.
Features & Specifications
- Manufacturer Part Number: ZW2021148
