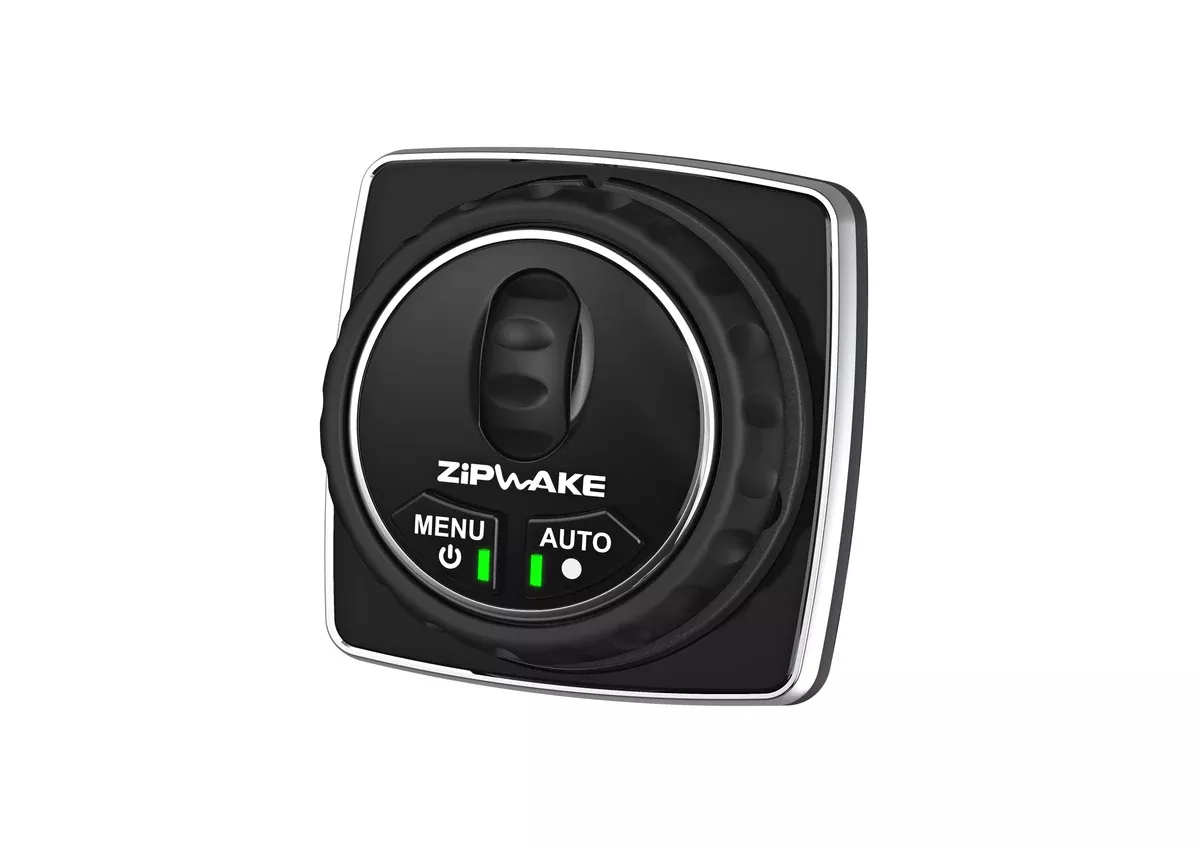

The Zipwake MC mini controller adds compact manual trim, heel and heading control to a Zipwake installation, particularly systems centered on the integrator module and an MFD.
Its waterproof, position-flexible design uses the familiar Zipwake control wheels and connects through I-BUS, with key-sense support for automatic system power-on.
Product Information
| Brand | Zipwake |
|---|---|
| Series | Series S / Series E / Series S PRO / Series E PRO |
| Model | MC |
| Manufacturer Part Number | 2012401 |
| Product Type | Mini Controller |
Key Features
- Compact manual system control
- Surface or flush mounting
- RGBW LED status indication
- I-BUS IN and OUT connections
- Key-sense connection
Specifications
| Indicators | RGBW LEDs |
|---|---|
| Operating Voltage | 12–32 V DC |
| Power Consumption | 2 W max |
| Operating Temperature | -20°C to +80°C (-4°F to +176°F) |
| Storage Temperature | -40°C to +90°C (-40°F to +194°F) |
| Waterproof Rating | IP67 |
| Compass Safe Distance | 0.5 m (1.7 ft) |
| Compliance | CE, FCC |
| Weight | 0.10 kg (0.22 lbs) |
| Dimensions | 60 × 60 × 32 mm (2.36 × 2.36 × 1.26 in) |
Included
- 1 × MC mini controller
- 1 × SC3-M12 standard cable, 3 m (10 ft)
Compatibility
For supported Zipwake systems with an integrator module and/or compatible control panel.
Installation Notes
- Mount in a position accessible to the helmsman and connect through the I-BUS network.
- Observe the 0.5 m (1.7 ft) compass-safe distance.
Important Information
The mini controller is not a standalone motion-control computer; it operates as a control interface within a complete Zipwake system.
Features & Specifications
- Manufacturer Part Number: ZW2012401
