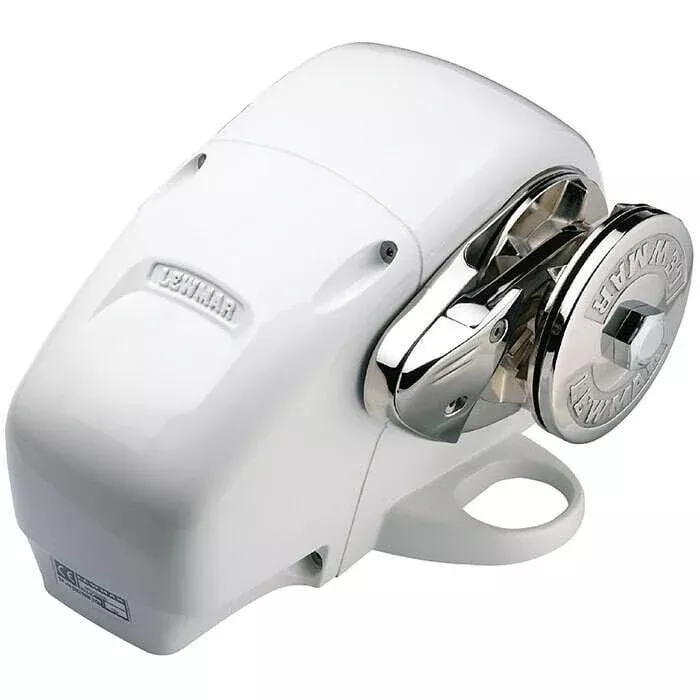

The Lewmar H3 Gypsy-Only Horizontal Windlass Kit is designed for boats from 37′ to 48′ LOA.
Features:
- Gypsy-only rope/chain windlass features full-power dual-direction functionality for complete control during anchor lowering and retrieval
- Robust horizontal worm motor-gearbox for reliable performance
- Built-in solenoid pack protected by aluminum and composite lightweight, durable main case
- DIY-ready windlass kit offers convenient on-deck installation, minimal maintenance and reliable performance
- Manual recovery available – sold separately
- Stainless steel warping drum with unique Wear and Abrasion Reduction Pattern (WARP) can be operated independently of gypsy
Note: A 32 mm nut wrench is no longer provided with Lewmar windlass kits
In the Box:
- Windlass
- Deck gasket seal
- Fast-mounting studs
- Circuit breaker
- Built-in dual-direction solenoid
- Guarded rocker switch
Specifications:
- Lewmar Gypsy No.: 505
- Chain Size: 5/16″ HT
- Rope Size: 9/16″ or 5/8″ 3-strand or 8-plait
- Motor Voltage: 12V DC
- Power Consumption: 1000W
- Current Draw: 85A
- Circuit Breaker: 110A
- Max. Pull: 1962 lbs
- Boat Size: 37′ to 48′ LOA
- Max. Working Load: 475 lbs
- Rode Release: Power up/down
- Retrieval Speed: 59 ft./min
- Material: Stainless steel, aluminum and composite
- Warranty: 5 years
