Features:

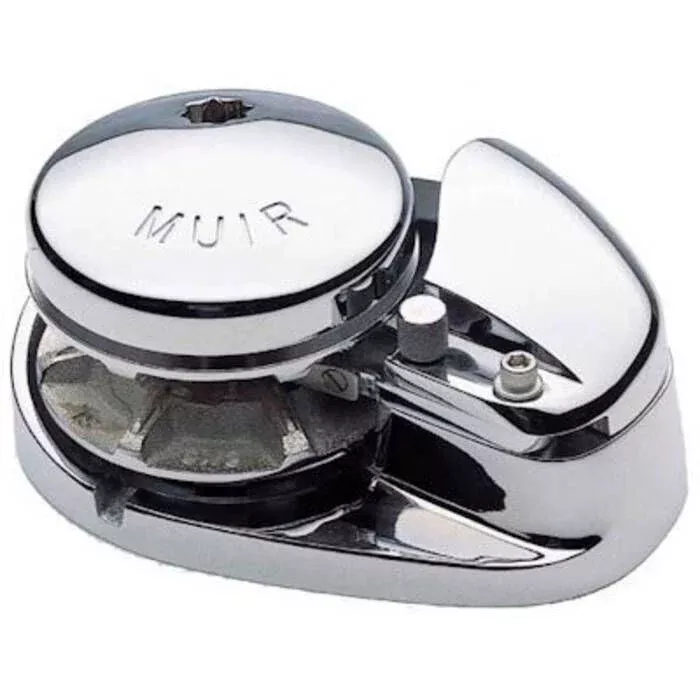

- The Low Profile Muir Storm 1250, Electric Stainless Steel is a vertical powered Rope/Chain Windlass with a Self-Aligning QuickFit Gearbox Coupler
- Allows the gearbox and motor to be installed directly onto the shaft in any radial position and alleviates installation problems due to uneven deck thickness
- This is helpful when installing a windlass onto a deck with any camber to the deck surface
- QuickFit connection simplifies installation (Sold Separately)
Specifications:
- Version: Low Profile (without Capstan)
- Vessel Length: 32′ – 42′ (10 – 13 m)
- Voltage: 12V DC
- MotorWage: 1000W
- Max Load: 1100 lbs (500 kg)
- Work Load: 275 lbs (125 kg)
- Amps Work Load: 100A
- Max Line Speed: 48’/min (14.5 m/min)
- Material: 316 Stainless Steel
- Finish: 316 Stainless Steel
- 3 Year Warranty
Included:
- Muir Storm 1250 Low Profile Windlass (without Capstan)
- Watertight Solenoid Box
- (2) Footswitches (Up and Down)
- Rope / Chain Management System
- Clutch Handle
Product Brochure
Owner’s Manual
Muir Chainwheel Chart
WARNING
