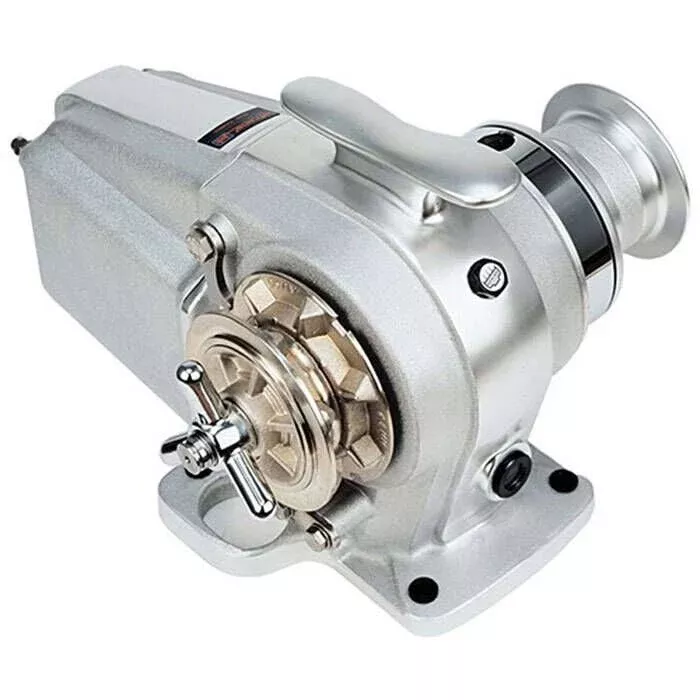

The Lofrans Tigres Windlass comes with a powerful reversing motor allowing the anchor to be released electrically as well as manually.
Features:
- Series-wound electric motors – for higher power ratings, faster retrieval speeds, easy servicing, greater dependability and longer lasting service
- Mounted in white or anodized housing above deck (model dependent)
- Made of a special sea water-resistant light alloy
- Convenient sight glass allows easy visual inspection of oil level
- Rope drum can be used independently of gypsy
- Horizontal windlasses put the motors on deck in sleek housings that provide a more traditional appearance; stand much closer when tailing
- Unique aluminum collar design won’t bind or corrode over years in a saltwater environment
- Watertight control box
- Foot switches (2)
- Chainwheel with Manual override
- Manual/Emergency mode (Handle is included)
- Power-up (Reversible to power-down)
- Useful top-mounted cleat
12V Windlass Specifications:
- Line Speed at Working Load: 14 m/min
- Max Line Speed: 33 m/min
- Maximum Pull: 2,976 lbs (1,350 kg)
- Weight: 62 lbs (28 kg)
- Motor Wattage: 1,500W
- Amps at Working Load: 160
- Working Load: 418 lbs (190 kg)
- Dimensions (L x W x H): 16 5/16″ x 13 3/8″ x 11 7/16″ (415 x 340 x 290 mm)
24V Windlass Specifications:
- Line Speed at Working Load: 16 m/min
- Max Line Speed: 33 m/min
- Maximum Pull: 3,086 lbs (1,400 kg)
- Weight: 62 lbs (28 kg)
- Motor Wattage: 1,500W
- Amps at Working Load: 90
- Working Load: 429 lbs (195 kg)
- Dimensions (L x W x H): 16 5/16″ x 13 3/8″ x 11 7/16″ (415 x 340 x 290 mm)
Installation and User’s Manual
Deck Template
Features & Specifications
- Manufacturer Part Number: LW415AN-1/4
