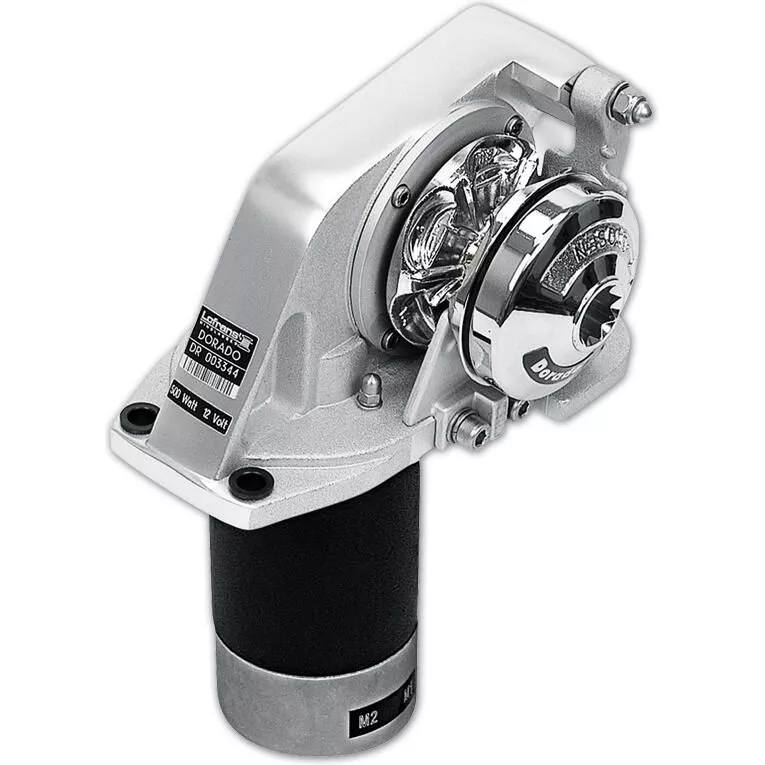

The Lofrans Dorado windlass is capable of handling rope and chain on the same gypsy with the help of a specially engineered spring-loaded finger which keeps the warp firmly connected to the gypsy by applied pressure.
Features:
- Marine aluminium anodized body
- Manual chain release
- Rope chain management by the spring load arm
- Heavy duty rated IP66 electric motor
Specifications:
- 500W Motor:
- Line Speed at Working Load: 18 m/min
- Max Line Speed: 79′ (24 m)/min
- Maximum Pull: 1320 lbs (600 kg)
- Weight: 22 lbs (10 kg)
- Amperage at Working Load: 65A
- Working Load: 154 lbs (70 kg)
- 800W Motor:
- Line Speed at Working Load: 20 m/min
- Max Line Speed: 66′ (25 m)/min
- Maximum Pull: 1430 lbs (650 kg)
- Weight: 24 lbs (11 kg)
- Amperage at Working Load: 80A
- Working Load: 176 lbs (80 kg)
- Model Type: Port, Low Profile
- Power Supply: 12V
