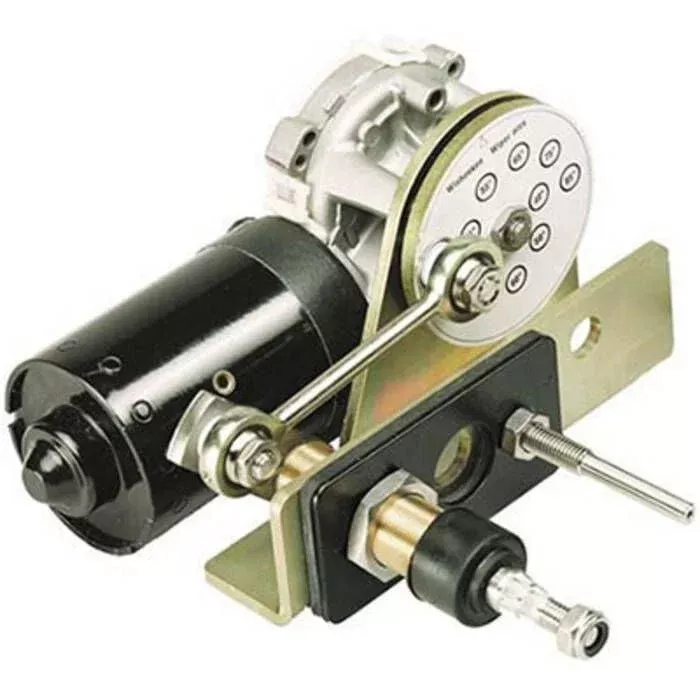

The Exalto Windshield Wiper Motor is a powerful 2-speed wiper motor that drives pantograph wiper.
Features:
- Motor designed and built to withstand the toughest conditions at sea
- Easily adjustable sweep angle 40° to 90°
- Dynamic parking, changeable to port or starboard
- Stainless steel, tapered driveshaft and components with durable galvanized steel bracket
- Optional motor cover available (not included)
- Easy installation and wiring
Specifications:
- Max Arm Length: 29 1/2″ (750 mm)
- Max Blade Length: 29 1/2″ (750 mm)
- Adjustable Sweep Angle: 40 deg. – 90deg. in 5 deg. increments
- Sweeps per Minute: 38 (low) / 59 (high)
- Mount: Bulkhead
- Torque: 23 Nm
- Voltage: 12/24V DC
- Rated Amp Draw: 3A
- Fuse: 6A
Owner’s Manual with Installation Instructions (1.07 MB)
T1 Wiper System Data Sheet
Wiper System Product Information and Brochure (2.76 MB)
