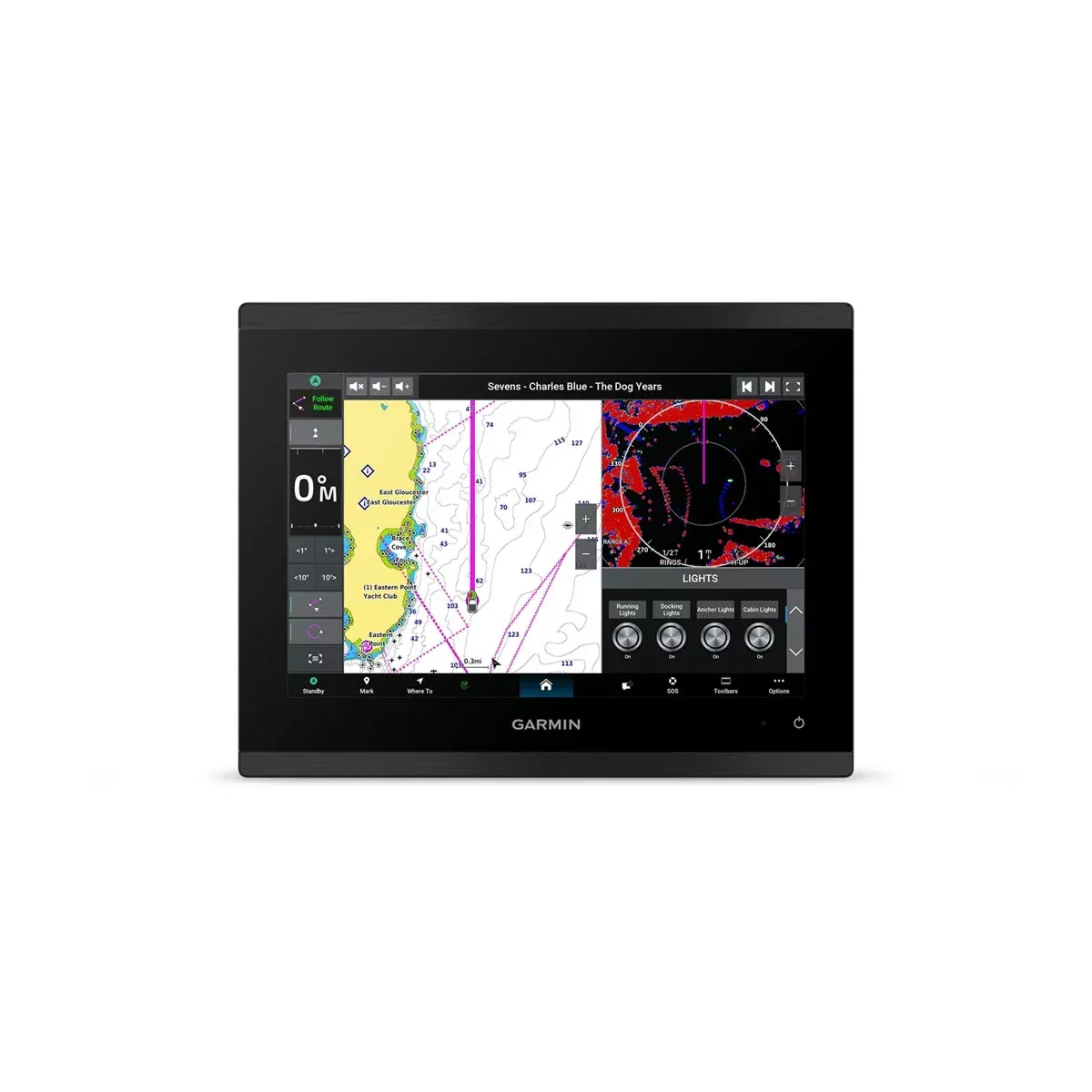

The Garmin GPSMAP 9210 Series 10″ chartplotters are premium marine navigation systems designed for captains and anglers who want detailed charts and reliable performance on the water. These integrated touchscreen units provide clear navigation and optional built‑in sonar for underwater mapping.
Available Models
- GPSMAP 9210 (GRM010-03175-01): Premium Chartplotter with preloaded regional charts
- GPSMAP 9210xsv (GRM010-03175-03): Premium Chartplotter with preloaded regional charts and built‑in sonar for enhanced fish‑finding
Display & Physical Details
- Display Size: 10.24″ width x 5.34″ height (diagonal 8.54″)
- Display Resolution: 1920 x 1200 pixels, WUXGA IPS with edge‑lit backlight
- Unit Dimensions: 10.24″ x 7.87″ x 3.54″
- Weight: 5.55 lbs (2.52 kg)
- Water Rating: IPX7
Key Features
- Fast processing performance for smooth chart and sonar interaction
- Wireless connectivity for software updates and navigation data
- Multiple mounting options including bail, flush, or flat
- Supports advanced sonar capabilities on xsv models with built‑in sonar
- Two microSD card slots for chart storage and data
Connectivity & Networking
- NMEA 2000 networking compatibility
- NMEA 0183 connections
- USB‑C port for data and power
- Video input and HDMI output support
- Wireless connectivity for local device management
SKU & Part Numbers
- GPSMAP 9210 – GRM010-03175-01
- GPSMAP 9210xsv – GRM010-03175-03
Available Options
| Manufacturer Part Number | Series | Chart Type |
|---|---|---|
| 010-03175-01 | 9210 | Regional Charts |
| 010-03175-03 | 9210xsv | Regional Charts + Sonar |
