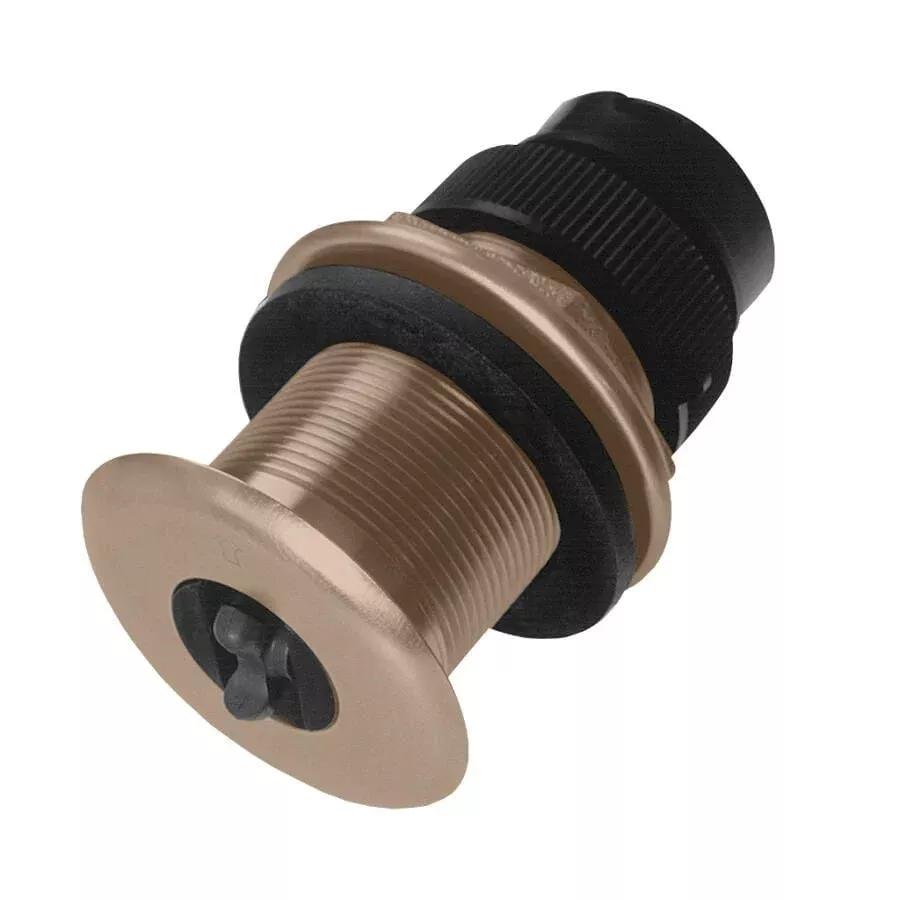

The ST800 speed and temperature sensor processes digital signals inside the thru-hull housing. Then this Smart Sensor sends data to a chart plotter, radar screen, or digital display in NMEA 2000 format. These low-profile units are nearly flush, minimizing drag with only 3/16″ (5 mm) extending outside of the hull.
Features:
- Speed and fast-response water-temperature sensing
- Speed range from 2 to 45 knots (2 to 52 MPH)
- NMEA 2000 output
- Retractable insert in a low-profile housing with a water valve
- Airmar’s Smart Sensor technology
Specifications:
- Material: Model dependent
- Cable length: 20′ (6 m)
- Comm method: NMEA 2000
- Data rate: 1 hz
- Display connector: N2 Micro
- Functions: Speed/temperature
- Hole size: 2″ (51 mm)
- Mounting style: Low profile thru-hull
- Pulses: 17,000 p/nm (4.8 Hz per knot)
- Retractable housing: Yes
- Speed Range: 2 to 45 knots (2 to 52 MPH)
- Speed type: Paddlewheel
- Temperature accuracy: ±1.8° F (±0.5° C)
- Tilted element: No
- Usable shaft length: 2.25″ (57 mm)
- Voltage: 9 to 16V DC
- Water temperature: 14° to 104° F (-10° to 40° C)
- Weight: 2.8 lbs (1.3 kg)
